odel NO.
FS800-FS1500
Size
600*600mm
Function
Thermal Insulation, Anti-Fouling, Fireproof, Soundproof, Waterproof, Anti-static
Color
Grey
Metal Type
Steel
Certification
CE, ISO, ASTM
Usage
Electrical Factory, Computer Room, Bank, Offices
Advantage
Long Life of Usage
Customized
Customized
Transport Package
Pallet
Specification
ISO, SGS, CE, TUV, PSB, EN, Intertek
Trademark
HT
Origin
Changzhou, Jiangsu
HS Code
68091900
Production Capacity
600, 000sqm/Year
Packaging & Delivery
Package Size
88.00cm * 58.00cm * 88.00cm
Package Gross Weight
220.000kg
Product Description

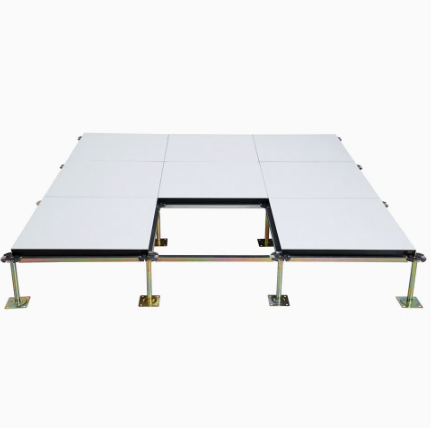

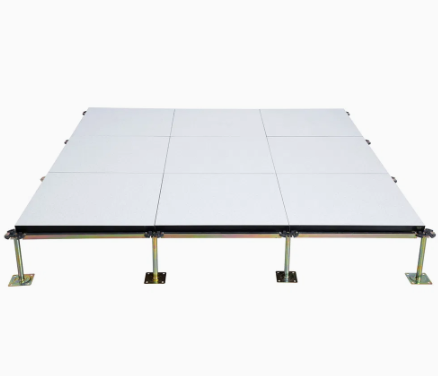

Calcium Sulphate Access Panel
Calcium Sulphate Access Panel StructureHT Calcium Sulphate Access Floor for Clean Room is made of high-strength calcium sulphate(calcium silicate or cement particle board)core. The top surface is stuck with High Pressure Laminate (HPL) or PVC or ceramic, the bottom is covered with aluminum foil or galvanized steel sheet. Four edges are sealed with black PVC edge trim.
Calcium Sulphate Access Panel Characteristics
- Recoverable and environmental protection
- Good loading capacity and conductivity
- High dimension accuracy and good interchangeability
- Good sealing and water-proof
- Fire-proof , antisepsis and sound insulation
- Recoverable and environmental protection
- Good loading capacity and conductivity
- High dimension accuracy and good interchangeability
- Good sealing and water-proof
- Fire-proof , antisepsis and sound insulation
| Type | Size | Uniform load | Concentrated load | Rolling load | Ultimate load | System resistence | ||
| 0.100''/2.5mm DEFLECTION | 10PASS | 10KPAAASS | ||||||
| Medium Duty | 600*600mm | 17.78KN/ | 3.56KN | 363KG | 2.94KN | 2.45KN | 11.25KN | Conductive: 104-106Ω Dissipative:106-1010Ω |
| Heavy Duty | 22.22KN/ | 4.45KN | 454kG | 3.56KN | 2.67KN | 14.50KN | ||
| Extra Heavy Duty | 27.78KN/ | 5.56KN | 567KG | 4.45KN | 3.56KN | 18.36KN | ||
