No. Model.
505
Working mode
Work
Certification
CE, RoHS
Application
In the house
Operating principle
Electromechanical
Signal transmission mode
Audio and visual warning
Alarm volume (within 1m)
≥80dB
backup power
<10ua
warning line
<70ma
sensor type
electrochemical
Product size
90.0*90.0*50.0mm
CE standard
en 14604:2005+ac:2008 standard
Shipping Package
cardboard box
Brand
Scondor machine
Origin
China
HS Code
8531100000
Production Capacity
50,000 bales/month
Product Description

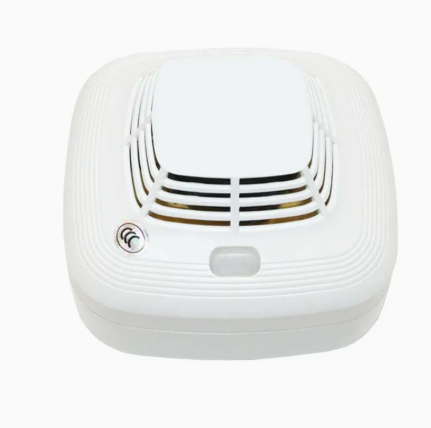

Fire alarm system alarm system with smoke detector with ce standard
Advanced features:
Advanced features:
- 10 year infrared photoelectric sensor
- Replaceable battery 9V(6F22)
- To 85 Decibel Alarm
- Low battery warning, error warning
- CE certified according to standard en 14604:2005+AC:2008
| Power supply voltage: | DC 9V (6F22 alkaline battery) |
| Bulb life: | Replaceable for 3 years |
| Low battery voltage: | <2.6V |
| Backup current: | <10uA |
| Warning line: | <70mA |
| Standard: | EN 14604:2005+AC:2008 |

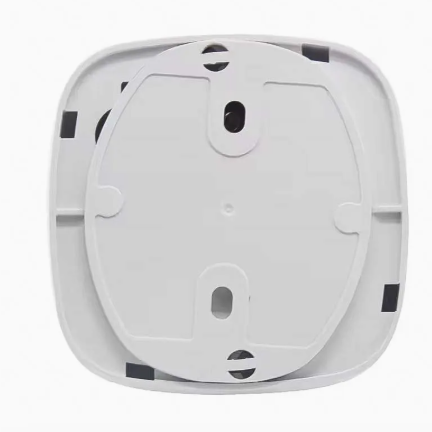

| Installation location: | Ceiling/wall mounting (with accessories) |
| Operating temperature: | 0ºC~50ºC |
| Relative humidity: | <95%RH (non-condensing) |
| Warning method: | Sound, light alarm |
| Alarm sound level: | >85dB |
| Sensor Type: | Infrared photoelectric |
| Sensor life: | 10 years |
| Product weight: | 130g |
| Product size: | 90.0*90.0*50.0mm |
