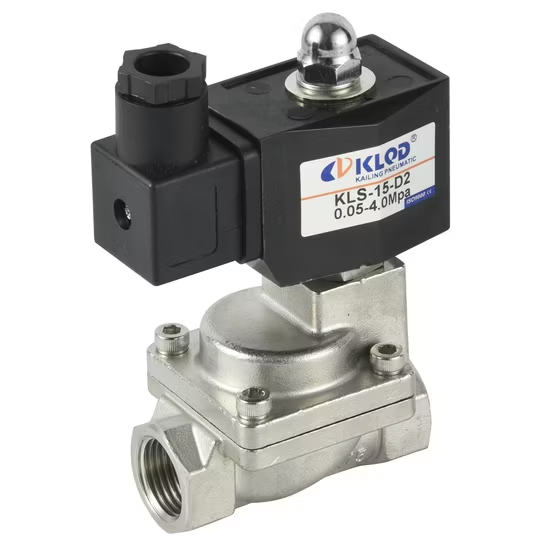

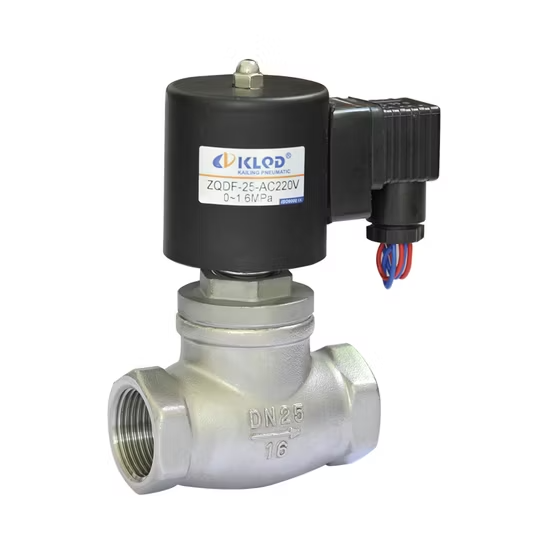

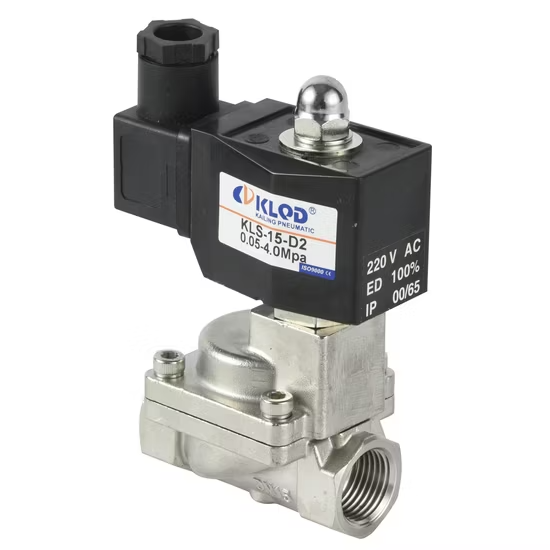

Loại: Van điện từ 2/2-way (hai vị trí hai chiều), pilot-operated piston type (pilot piston/direct-acting piston structure), normally closed (NC), dùng cho high temperature/high pressure.
Vật liệu chính:
Body: Stainless steel SUS304 (hoặc SUS316 tùy biến thể).
Seal: Rubber (cho low pressure, better sealing) hoặc PTFE/Teflon (cho high temperature water/steam, chemical fluids, nhưng sealing kém hơn rubber).
Coil: Heat-resistant grade H (chịu nhiệt cao).
Kích thước & Kết nối:
Port size: 1/4" đến 1/2" (ví dụ KLS-15: G1/2"; biến thể lên đến G1" hoặc lớn hơn).
Connection: Thread (G, PT, NPT, BSPP).
Áp suất: High pressure (high pressure type); Phạm vi không chi tiết cụ thể (thường 0–1.6 MPa cho steam/high temp, tùy seal & model; rubber seal low pressure tốt hơn).
Nhiệt độ:
Ordinary temperature (tiêu chuẩn).
High temperature: Phù hợp high-temperature water, steam, chemical fluids (coil grade H chịu nhiệt cao; PTFE seal cho steam/high temp).
Điện: AC solenoid valve (AC220V ví dụ; voltage tùy chọn AC/DC, không chi tiết cụ thể).
Orifice & Flow: Không chi tiết cụ thể (CV/flow rate không liệt kê rõ, nhưng pilot piston type cho lưu lượng tốt).
Tính năng nổi bật:
Pilot piston/direct-acting structure.
Wide applications (gas, water, light oil, chemical fluids).
Heat-resistant coil & seal options (rubber/PTFE).
Compact, high quality, good service.
100% quality test trước packing.
Ứng dụng: Water industrial usage, high-temperature water, steam, chemical fluids, gas.
Chứng nhận: ISO9001, CE, RoHS.
