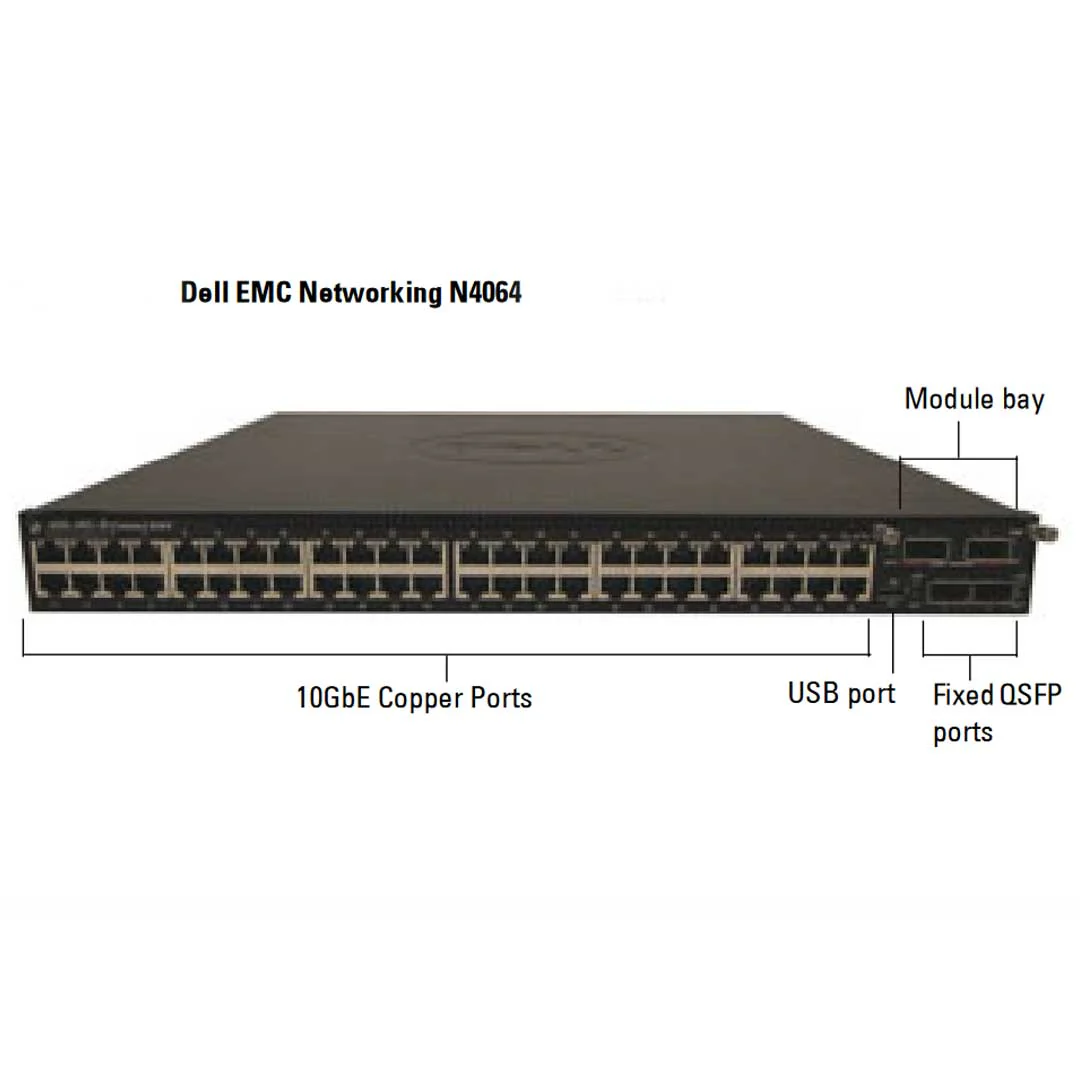

| Overview | 48x 10GbE RJ45 auto-sensing (10Gb/1Gb/100Mb) fixed ports, 2x 40GbE QSFP+ fixed ports, 1x hot swap expansion module bay, 2x redundant 460W PSU included |
| Config |
|
| Modules (optional) |
|
| Power Supplies (optional): | RPS720 External Power Supply for N2000 non-POE (720 watts): not available MPS1000 External Power Supply for N2000 POE+ Switches (1000 watts): not available 200w, hot swappable, with V-Lock, adds redundancy to non-PoE switches: not available 715w, hot swappable, adds redundancy or to power all PoE+ ports fully: not available 1100w, hot swappable, adds redundancy or power all PoE+ ports fully: not available |
| Performance | |
| Switch capacity | 1.28Tbps |
| Forwarding capacity | 952Mpps |
| Buffer size | 9MB |
| CPU Memory | 2GB |
| Flash Memory | 256MB |
Stacking Attributes | User port stacking: 10Gbps or 40Gbps Maximum stacking distance (meters): 100 Maximum stacking speed (full-duplex): 320Gbps |
| Dimensions in inches (H x W x D) | 1.71 x 17.08 x 18.11 |
| Dimensions in millimeters (H X W X D) | 43.43 x 433.83 x 459.99 |
| Approximate weight in pounds (without modules) | 24.07 |
| Approximate weight in kilograms (without modules) | 10.92 |
Environmental Operating Conditions | |
| Operating Temperature in Celsius | 0° to 45° C |
| Operating Temperature in Fahrenheit | 32° to 113° F |
| Storage Temperature in Celsius | -20° to 70° C |
| Storage Temperature in Fahrenheit | -4° to 158° F |
| Operating Relative Humidity | 90% |
| Storage Relative Humidity | 95% |
| Power Supply (Watts) | 460 |
| Power Supply Efficiency | 80% or better in all operating |
| Power and cooling | |
| Max Thermal Output (BTU/hr) | 1353.53 |
| Max. power consumption (watts) | 395 |
| AC power supplies | 2 hot swappable power supply bays, 1 PSU included |
| Redundant power | Optional (internal) |
| Airflow | I/O panel to PSU |
| Features | |
| Stacking | Stacks up to 12 using 10Gb or 40Gb user ports |
| VLANs | 4094 |
| VLAN support | Voice VLAN, Private Edge, Protocol and MAC-based, GVRP |
| Layer 2 and 3 | Layer 3 Advanced |
| IPv4/IPv6 routing | IPv4/IPv6, RIP, OSPFv3, VRRP, static routing |
| Multicast support | IGMP v1/v2/v3, IGMP Proxy, IGMP Snooping and Querier, DVMRP, PIM-DM, PIM-SM |
| Rapid Deployment | Ready rails, deploy switch configuration files, stacking commands and firmware updates by simply inserting a USB device into the port. |
| iSCSI optimization | iSCSI aware (detect and prioritize iSCSI traffic into pre-defined QoS); iSCSI auto-configuration (switch configuration routine automatically sets up and optimizes performance with Dell EqualLogic storage arrays) |
| Management and security | |
| Switch security | Strong passwords, password masking, management access control - privilege levels. RADIUS and TACACS+ support, 802.1x port-based authentication. |
| SNMP support | SNMPv1/2/3 |
| sFlow | Yes |
| Management | GUI access via http/https. CLI via console, Telnet, SSH, HiveManager NG |
