Model NO.
DG6500SE
Type
Basic Diesel Generator
Installation Method
Portable
Stroke
Four Stroke
Cooling Method
Air Cooled
Output Type
AC Single Phase
Speed
Speed
Conditions of Use
Land Use
Usage
Common Units
Landuse Type of Unit
Ordinary
Excitation Mode
AC Rotating Exciter
Engine
10 HP Diesel Engine Hr186fa
Generator Power
4.6kw
Engine Rpm
3600
Noise
68-72DBS
Transport Package
Carton with Wood
Specification
CE, GS, ROHS, ISO9001-2008
Trademark
Hi-earns or OEM
Origin
Jiangsu, China
HS Code
85021100
Production Capacity
100PC/Day
Packaging & Delivery
Package Size
95.00cm * 56.00cm * 76.00cm
Package Gross Weight
155.000kg
Product Description

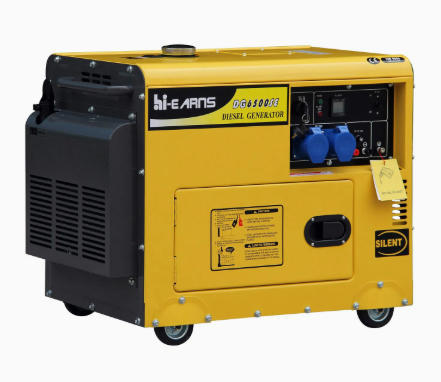

* Generator model: 5kw Silent Type Diesel Generator with Battery (DG6500SE)
* With 10HP HR186FA diesel engine, ensure the rated output reach 4.6KW and max. Output can reach 5KW; Silent model can control the noise under 72DBS, applied by several families!
* All spare parts pass Strict and Accurate raw material detection(IQC); All finished products detection Match ISO standard;
* Warranty: Running 500 hours or one year. Can support free spare parts for repairing during warranty time also low than market price spare parts out of warranty time!
* Modern Production Workshop, strict producing process, ensure a Fast and High-quality products output
* 100% copper good brand alternator, every spare parts suppliers are choosed extremely strict, to control the quality well.
As a professional manufacture of diesel engine(4-22HP), diesel generator(1.8-1000KW), diesel water pump(1.5-4INCH), small construction machine and so on.
Just send us your inquiry with what u need, we will highly appreciate it!
| GENERATOR | Model | DG6500SE | |
| Frequency(HZ) | 50 | 60 | |
| Max.output(kw) | 5 | 5.5 | |
| Rated output(kw) | 4.5 | 5 | |
| Rated.AC voltage(V) | 120,220,230,120/240 | ||
| Power factor(cosΦ) | COSΦ=1 | ||
| DC output (V) | 12V/8.3A | ||
| Phase | Single phase | ||
| Alternator type | self-excited,2-pole,single phase alternator | ||
| Starting system | Electric | ||
| Operating noise level(at 7m) | 68~72 | ||
| Fuel tank capacity(L) | 16 | ||
| Continues work(hr) | 7.3 | 7 | |
| ENGINE | Model | HR186F | |
| Engine type | Single-cylinder,vertical,4-stroke air-cooled diesel engine | ||
| Bore*stroke(mm) | 86*72 | ||
| Fuel | 0# or -10#light diesel oil | ||
| Lubrication oil volume(l) | 1.65 | ||
| Combustion system | Direct lnjection | ||
| STANDARD FEATURES | Voltmeter | yes | |
| AC Output Socket | 2 | ||
| AC circuit breaker | yes | ||
| Oil warning light | yes | ||
| Oil alert | yes | ||
| OPTIONAL FEATURES | DC circuit breaker | optional | |
| Calculagraph | optional | ||
| Big Wheel | optional | ||
| Three phase voltage | optional | ||
| Current meter | optional | ||
| ATS | optional | ||
| Remote control | optional | ||
| Welding | optional | ||
| DIMENSIONS | Dimension(L×W×H)(mm) | 960×555×780 | |
| Net weight(kgs) | 175 | 176 | |
| 20FT | 72 | ||
Introduction
Our factory can produce portable diesel generator set. This kind of products can be used at home, office, fieldwork and many other work. We can supply this kind of products with power from 2KW to 18KW. Single phase or three phase. Have ISO9001-2015,E-Mark(E9),CE and so on certificates. Have steady quality and competitive price.
Advantages of our diesel generators,
1.High efficiency and energy saving:Low fuel consumption, low noise, low displacement, low pollution and high working efficiency
2.Customized service to meet different needs,more durable, more fashionable, beautiful and practical appearance,famous brand spare parts
3.Different canopy optional:Patented canopy design, rainproof, lower noise,more convenient use
4.Good after-sales service:1 year or 500 running hours whichever comes first and lifetime maintenance
5.Industry and trade integrated enterprise:More standardized scale and process,understand the product better and higher reliability,can communicate more efficiently
