Model NO.
EC-304-75B
RO Capacity
75 Gpd
Voltage
24VDC
Inlet Pressure
0 Psi
Flow
≥0.8 Lpm @70psi
Current
1.2A @70psi
Max Current
1.5A
Max Pressure
110psi - 150psi
Patent Product
Yes
Transport Package
12 PCS/Carton
Specification
177 x 103 x 103 mm
Trademark
E-CHEN
Origin
China
Product Description

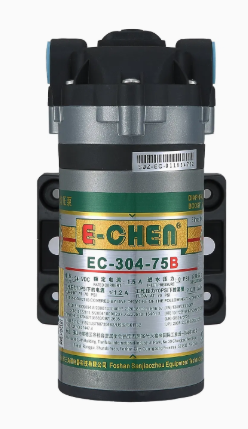

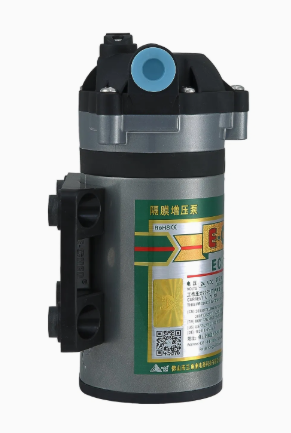

E-CHEN Diaphragm RO Booster Pump 304 Series
Designed for area where there is no domestic water system or have 0 inlet water pressure. Strong self-priming and boost pressure 70psi make 304 series tough enough for any circumstance.
Features
Patented product
Compact design
Low noise
High efficiency
Strong Self-Priming
No decompression
Low power consumption
No water leakage problem
No influence from climate or temperature
Materials of Construction
Nylon Housing
EPDM Valves
Santoprene Diaphragm
Stainless Steel Fasteners
Applications
Pre-Filter Water Treatment
RO Boost
Carbonation Systems
Misting Systems
Medical Labwater
Fuel Cells
Reverse Osmosis System
Packing
Weight: 2.1 kg/ea
Net Weight: 25.2 kg/crt, 12 pcs/crt
Growth Weight: 26.5 Kg/crt
Carton Dimensions: 50 x 26.5 x 35.5 cm
