Model NO.
LD1-TP6L
Color
Black
Voice Service
With Voice Service
Installation
Surface-Mounted
Certification
RoHS, FCC, CE
Motion Detection
Support
Door Unlock
Indoor Monitor Unlock&Remote Unlock
Connection
Wired, RJ45 Cable
Power Supply
AC110-240V(Door Phone); DC12V(Monitor)
Monitor
10.1-Inch HD Capacitive Touch Screen, 1024X600 Pix
Addtional Monitor Qty
up to 240
Camera
2-Mega Pixel, 145° Viewing Angle
Waterproof
IP65
APP
Tuya Smart/Smart Life
Transport Package
Carton Packing
Specification
390*139*46.5mm (Door Phone)
Trademark
Yiroka
Origin
China
HS Code
8517699000
Production Capacity
300000PCS/Year
Product Description

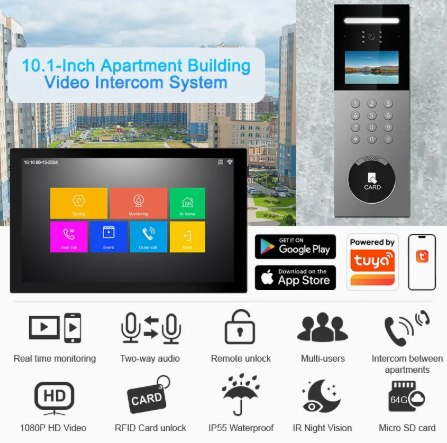

1080P Video Intercom System for Multi-Apartment Building Support TUYA APP
| Main Features | Video Call & Two-way Audio: When the visitor push the door phone button, you will get a call notification and talk with visitor by app remotely or hands-free talk icon in the indoor monitor | ||||||||
| Call Control Center: The outdoor video door phone can call the control center to open the door | |||||||||
| Door Unlock: * Open the door lock by entering the password * Open the door lock by RFID IC Card * Open the door lock by app remotely or unlock icon in the indoor monitor | |||||||||
| Recording: Record every moment using SD card storage or cloud storage | |||||||||
| Night Vision: Powerful night vision means no interruptions even in the night | |||||||||
| Leaving Message: When nobody at home, the monitor can be set at "Not At Home" Mode. When the visitor push the door phone button, it will enter into leaving message mode and visitor can leave a message. The message can be checked from "Playback" menu in the monitor | |||||||||
| Share Device: The door phone can be shared with families and friends and they can also preview online | |||||||||
| Combination of 3pcs Door Phone and 6pcs Indoor Monitor: Support max. 3pcs outdoor video door phone, support to connect max.240pcs indoor monitor, each room support max. 6pcs indoor monitor, support independent one-to-one call intercom between indoor monitor | |||||||||
| IP Camera Connection: Support to connect 4pcs IP camera with onvif protocol, 2-mega pixel, 1920*1080p, H.264 video compression | |||||||||
| Video Door Phone | Camera | Sensor | 1/2.9" CMOS, 2-Mega pixel | ||||||||||||
| Focal Length | 2.5mm | ||||||||||||||
| Viewing Angle | 145°(D), 110°(H), 80°(V) | ||||||||||||||
| Min Illumination | 0.01 Lux | ||||||||||||||
| Audio | Input | Built in Microphone | |||||||||||||
| Output | Built in Speaker | ||||||||||||||
| Two-way Audio | Full duplex | ||||||||||||||
| Video | Compression Standard | H.264/H.265 | |||||||||||||
| Frame Rate | 1~25Fps | ||||||||||||||
| Max. Resolution | 1920*1080 | ||||||||||||||
| Transmission Method | Digital Network Transmission | ||||||||||||||
| IR Lamp | 4pcs 5mm 850nm LED | ||||||||||||||
| Network | RJ45 Wired Network | RJ45 Port | |||||||||||||
| Supporting Protocol | TCP/IP, UDP/IP, DHCP | ||||||||||||||
| IP Address Type | Dynamic IP Address | ||||||||||||||
| Function | Wake-up Method | Motion Detection wake-up and Ringing door phone wake-up | |||||||||||||
| Indicator Light | Red LED | ||||||||||||||
| Interfaces | Power Supply | AC110V-240V, 50-60Hz | |||||||||||||
| Network Port | RJ45 Port | ||||||||||||||
| Door Lock Connector | Yes | ||||||||||||||
| Button | Door Phone Button (Long press 5 seconds will reset the door phone) | ||||||||||||||
| Installation | Installation Method | Bracket Installation with Waterproof Cover | |||||||||||||

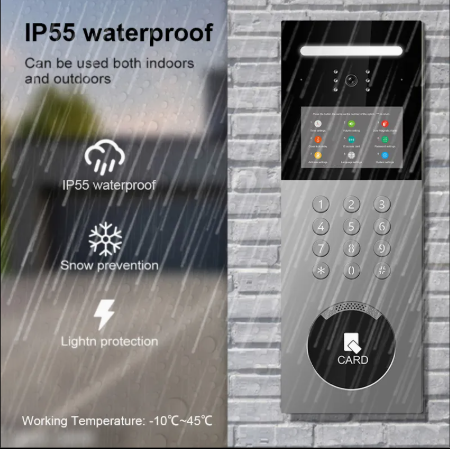

| Environment | Dustproof and Waterproof | IP65 | |||||||||||||
| Working Temperature | -10 ºC ~ 45 ºC | ||||||||||||||
| Storage Temperature | -20 ºC ~ 60 ºC | ||||||||||||||
| Specification | Dimension | 135*60*43.7mm | |||||||||||||
| Material | PC | ||||||||||||||
| Color | Black | ||||||||||||||
| 10.1-inch Indoor Monitor | Screen | TFT Screen | 10.1-inch HD Capacitive Touch Screen, 1024x600 pixels | ||||||||||||
| Audio | Input | Built in Microphone | |||||||||||||
| Output | Built in Speaker | ||||||||||||||
| Two-way Audio | Full duplex | ||||||||||||||
| Video | Transmission Method |
| |||||||||||||
| Max. Resolution | 1920*1080 | ||||||||||||||
| Network | Wireless Standard | 2.4GHz Wi-Fi (IEEE802.11b/g/n) | |||||||||||||
| ASK | 433MHz | ||||||||||||||
| Supporting Protocol | TCP/IP, UDP/IP, DHCP | ||||||||||||||
| IP Address Type | Dynamic IP Address | ||||||||||||||
| Recording | Recording Method | Alarm triggered Recording, Manual Recording | |||||||||||||
| Video Storage | Cloud Storage, Local Micro SD card (Max. 64GB) | ||||||||||||||
| Function | Wake-up Method | Motion Detection wake-up and Touch wake-up | |||||||||||||
| Alarm Notification | Alarm push by mobile APP | ||||||||||||||
| Smart Speaker Compatibility | Alexa&Google Home supported | ||||||||||||||
| APP | Tuya Smart | ||||||||||||||
| Unlock Method | Support Unlock by Indoor Screen, Wireless Exit Button or APP remotely | ||||||||||||||
| Optional Accessory | 433MHz Wireless Unlock Exit Button | ||||||||||||||
| Interfaces | Power Supply | DC12V, 1.5A (±5%) | |||||||||||||
| Storage | Micro SD Card Slot | ||||||||||||||
| Button | Pairing Button | ||||||||||||||
| Network Port | RJ45 Port | ||||||||||||||
| Language | OSD Language | English, Portuguese, Russian, French, Spanish, German, Simplified Chinese | |||||||||||||
| Installation | Installation Method | Bracket Installation | |||||||||||||
| Environment | Working Temperature | -10 ºC ~ 45 ºC | |||||||||||||
| Storage Temperature | -20 ºC ~ 60 ºC | ||||||||||||||
| Specification | Dimension | 200*140*17mm (not include bracket) | |||||||||||||
| Material | ABS | ||||||||||||||
| Color | Black | ||||||||||||||
| Unlock Exit Button (Optional) | Unlock | One-click Unlock | |||||||||||||
| Working Frequency | 433MHz | ||||||||||||||
| Working Distance | 150M (Open Space) | ||||||||||||||
| Power Supply | 12V/23A Battery | ||||||||||||||
| Material | ABS | ||||||||||||||
| Color | Black | ||||||||||||||
| Dimension | 48*88*21mm | ||||||||||||||
| Working Temperature | -10~45ºC | ||||||||||||||
| Storage Temperature | -20~60ºC | ||||||||||||||
