Model NO.
WDM-DVR6504T-GL
Video File Logging Mode
Alarm Recording, Motion Detection Recording, Video Manual, Time Lapse Video
Hard Disk Size
8TB
Hdd Supported
1
Video Compression
H.264+
Audio Compression
G.711A
Hard Disk
1 SATA
Playback Channel
4chs
Power Supply
DC12V2a
Working Temperature
0 Celsius Degree--+55 Celsius Degree
Working Humidity
10%--90%
Audio in/out
4/1
VGA Output
1080P
Stream Type
Combine Streams/ Video Stream
Transport Package
Natural Packing
Trademark
Wardmay
Origin
Shenzhen, China
Production Capacity
20000 Per Month
Product Description

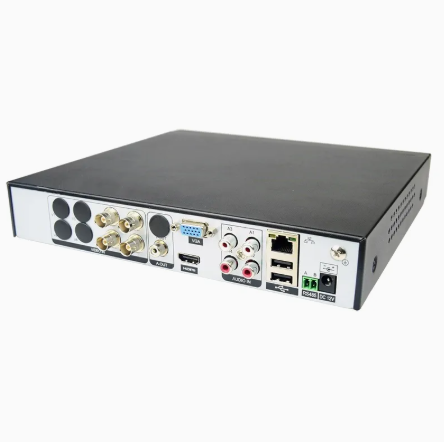

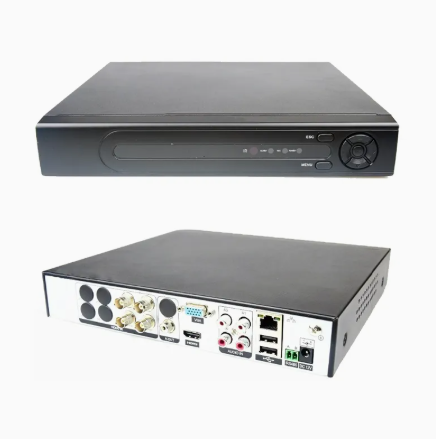

High Quality Hybrid DVR 4/8CH 8MP 4K CCTV Security DVR From Wardmay Ltd
Features:
* Support 4/8CHS 8.0MP/16CHS 5.0MP Encoding
* Support XVI,AHD, TVI,CVI, CVBS, IP video input
* Support VGA maximum 1080P output, HDMI up to 4K output
* Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, Alarm
* Support the Onvif protocol
* Support WEB, CMS, VMS, MYEYE Platform
* Mobile phone remote monitoring (iOS, Android)
* Cloud services, P2P, alarm information push to phone
* Support for more than twenty languages
Specifications:
Features:
* Support 4/8CHS 8.0MP/16CHS 5.0MP Encoding
* Support XVI,AHD, TVI,CVI, CVBS, IP video input
* Support VGA maximum 1080P output, HDMI up to 4K output
* Support DHCP, FTP, DNS, DDNS, NTP, UPNP, EMAIL, 3G, WIFI, IP search, Alarm
* Support the Onvif protocol
* Support WEB, CMS, VMS, MYEYE Platform
* Mobile phone remote monitoring (iOS, Android)
* Cloud services, P2P, alarm information push to phone
* Support for more than twenty languages
Specifications:
| Specifications | ||||
| Product Name | 4/8/16chs H.265+ 6 In 1 Network AHD DVR | |||
| Model No. | WDM-DVR6504T-GL | WDM-DVR6508T-GL | WDM-DVR6516T-GS | |
| System | ||||
| Processor | Hi3521D | Hi3531D | Hi3531D | |
| Video | ||||
| Video compression | H.265+ | |||
| Encode | 4*8M@8fps(AHD); 4*5M@14fps(6 in 1); 4*4M@18fps(6 in 1);4*3 M@21fps (6 in 1); 4*1080P(6 in 1) | 8*8M@8fps(AHD); 8*5M@14fps(6 in 1); 8*4M@18fps(6 in 1);8*3 M@21fps (6 in 1); 8*1080P(6 in 1) | 16*5M@6fps(6 in 1); 16*4M@8fps(6 in 1); 16*3 M@10fps(6 in 1); 16*1080P@18fps(6 in 1); 16*720P(6 in 1) | |
| Decode | 4*8M@6fps(AHD); 4*5M@8fps(6 in 1); 4*4M@8fps(6 in1); 4*3 M@8fps (6 in 1); 4*1080P@8fps(6 in 1) | 8*8M@6fps(AHD); 8*5M@8fps(6 in 1); 8*4M@8fps(6 in1); 8*3 M@8fps (6 in 1); 8*1080P@8fps(6 in 1) | 16*5M@6fps(6 in 1); 16*4M@8fps(6 in1); 16*3 M@10fps(6 in 1); 16*1080P@18fps(6 in 1); 16*720P(6 in 1) | |
| Multi-mode | Analog:4*8M; 4*5M | Analog:8*8M; 8*5M | Analog:16*5M;16*4M;16*1080P | |
| Hybird:2*8M (analog) + 2*8M (network) | Hybird:4*8M (analog) + 4*8M (network) | Hybird:8*4M@6fps(analog)+8*4M (network) | ||
| IP: 4*8M;8*1080P+8*960P;4*5M;4*3 M | IP: 8*3 M ;4*5M | IP: 8*3 M ;4*5M | ||
| Playback | 4ch | 8ch | 16ch | |
| Audio | ||||
| Audio compression | G.711A | |||
| Management | ||||
| Record mode | Manual>Alarm>Motion detection>Timing | |||
| Inquire mode | Inquire by Time/Calendar/Event/Channel | |||
| Storage mode | HDD Storage, Network Storage | |||
| Backup | Network, USB, SATA | |||
| Interface | ||||
| Video Input | 4*BNC (Support Coaxitron) | 8*BNC (Support Coaxitron) | 16*BNC (Support Coaxitron) | |
| HDMI output | 1*HDMI (MAX:4K) | |||
| VGA output | 1*VGA (MAX:1080P) | |||
| Audio In/Out | 4/1 | 4/1 | 4/1 | |
| Alarm In/Out | 0/0 | |||
| Ethernet | 1*10/100Mbps Ethernet port, RJ45 port | |||
| PTZ Control | 1*RS485, Support for multiple PTZ protocol | |||
| USB | 2*USB2.0 | |||
| HDD | 1*SATA interface (Up to 8TB) | |||
| General | ||||
| Power supply | DC12V 2A | |||
| Consumption | <10W(Without HDD) | |||
| Working temperature | 0ºC--+55ºC | |||
| Working humidity | 10%--90% | |||
| Chassis | Mini 1 U | |||
